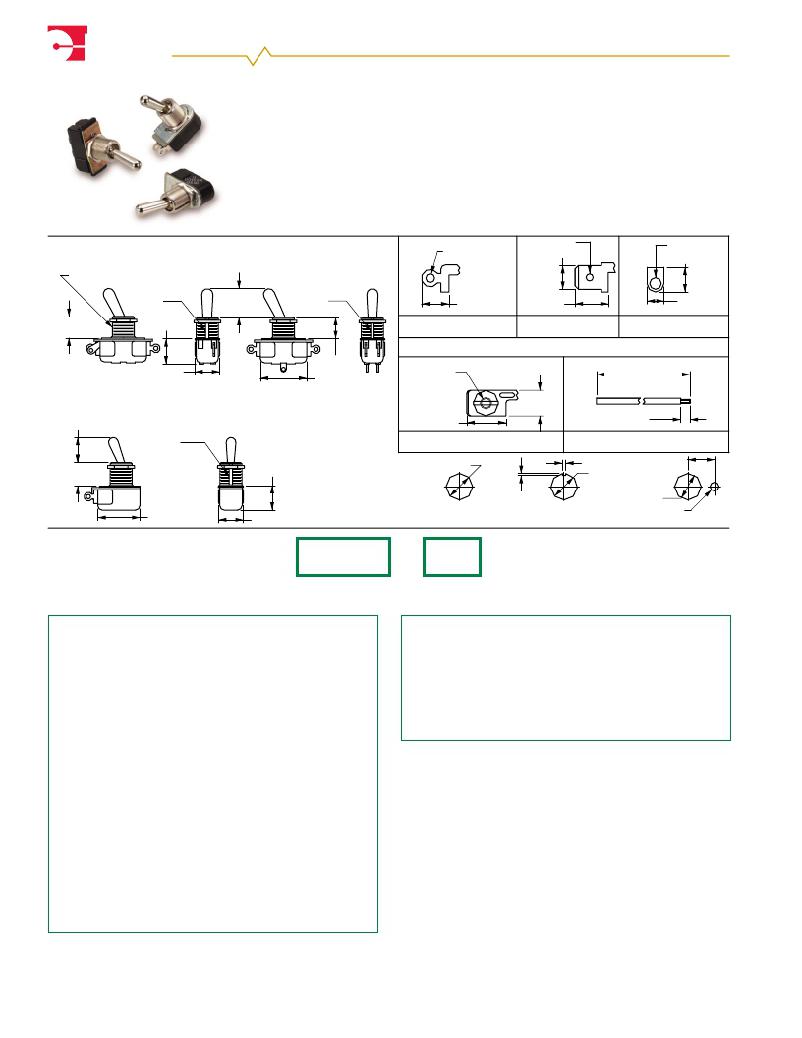

110-Series Heavy Action Toggle Switches
110-Series Heavy Action Toggle Switches
The 110-Series is a compactly designed, versatile metal
construction toggle switch which is appropriate for a variety
of uses. Features include single or double pole options,
maintained or momentary construction with termination
choices including solder lug end or bottom, wire leads and
.250 tab terminals. The quick make/quick break contact
mechanism makes the switch suitable for high voltage
(125-250 volt) applications. This switch is popular within
the Small Appliance, Floor Maintenance, and most low cur-
rent AC/DC market segments.
Dielectric Strength
UL/CSA: 1000 - live to dead
metal parts & opposite polarity
Electrical Life
25,000 cycles
Mechanical Life
50,000 cycles
Operating Temperature
0°F to 150°F (-17.8°C to +65.6°C)
15/32-32UNS-2A
.093[2.36] DIA
.075[1.90] DIA
.250[6.35]
.070[1.77] DIA
.174[4.42]
THREAD
KEYWAY
KEYWAY
.465[11.81]
.072[1.82]
X
.038[.965] DP
.580[14.73]
.687[17.46]
.072[1.82]
X
.038[.965] DP
.293[7.44]
SOLDER LUG
.351[8.92]
.250 TAB (Q.C.)
(SPST only)
.120[3.05]
SOLDER LUG
(bottom)
TERMINAL TYPE
.528[13.41]
112, 2BK, 2BL
SERIES
.465[11.81]
.984[25.00]
2BL62
SERIES
#6-32NC-2
THREAD
.270[6.86]
6.000[152.4]
.687[17.46]
KEYWAY
.072[1.82]
X
.038[.965] DP
.415[10.54]
SCREW
(ASSEMBLED)
.500[12.70]
INTEGRATED WIRE LEAD
(no exposed conductors)
.465[11.81]
.560[14.22]
.500[12.70] DIA
.062[1.57]
.500[12.70] DIA
.376[9.55]
110 SERIES
.038[9.65]
.500[12.70] DIA
.125[3.17] DIA
.890[22.60]
.524[13.31]
MOUNTING HOLE
WITH KEYWAY
WITH LOCKING RING
110 - S - 73
1
Base Part Number
1 BASE PART NUMBER: SERIES/CIRCUITRY 1 /RATING/TERMINATION 2
2
Actuator Style
2 ACTUATOR STYLE
3A 250V, 6A 125V, AC/DC
solder lug solder lug screw wire
(end) (bottom) terminals leads
BAT STYLE TOGGLE
unsealed sealed
52 57
toggle length
0.375
bushing length
0.343
Single Pole
63
68
0.500
0.465
ON-NONE-OFF
OFF-NONE-(ON)
ON-NONE-(OFF)
Double Pole
ON-NONE-OFF
110 110-B 110-S 111-16
110-M-NO 110-BM-NO 110-SM-NO 111-16M-NO
110-M-NC 110-BM-NC 110-SM-NC 111-16M-NC
2BK62 - - 2BK65
73 78
BALL STYLE TOGGLE
unsealed sealed
21 -
0.687
toggle length
0.375
0.465
bushing length
0.250
ON-NONE-ON
2BL62 - - 2BL65
22
-
0.375
0.343
1A 250V, 3A 125V, AC/DC
25
-
0.375
0.875
Single Pole
ON-NONE-ON
ON-NONE-(ON)
112
112-M
-
-
-
-
112-A
112-M-A
Double Pole
ON-NONE-OFF
OFF-NONE-(ON)
ON-NONE-(OFF)
ON-NONE-ON
ON-NONE-(ON)
216
216-M-NO
216-M-NC
316
316-M
-
-
-
316-B
316-BM
-
-
-
-
-
216A
216A-M-ANO
216A-M-ANC
-
-
2 circuit
1 ON - 1 OFF
1 (ON) - 1 (OFF)
516
516-M
516-B
516-BM
-
-
516-A
516-AM
6A 120VAC
Single Pole
ON-NONE-ON
2BB62
-
-
2BB65
5A 250V, 10A 125V, 1/4HP, 125V
Single Pole
ON-NONE-OFF
160H 160H-B
160H-S
160H-A
NOTES
1
2
()
30
Momentary function only available with 73 toggles.
160H and 110-Series are available with .250 tab terminals. Add suffix /TABS to end of part number. ex. 110-73/TABS
Indicates momentary function.
www.carlingtech.com
